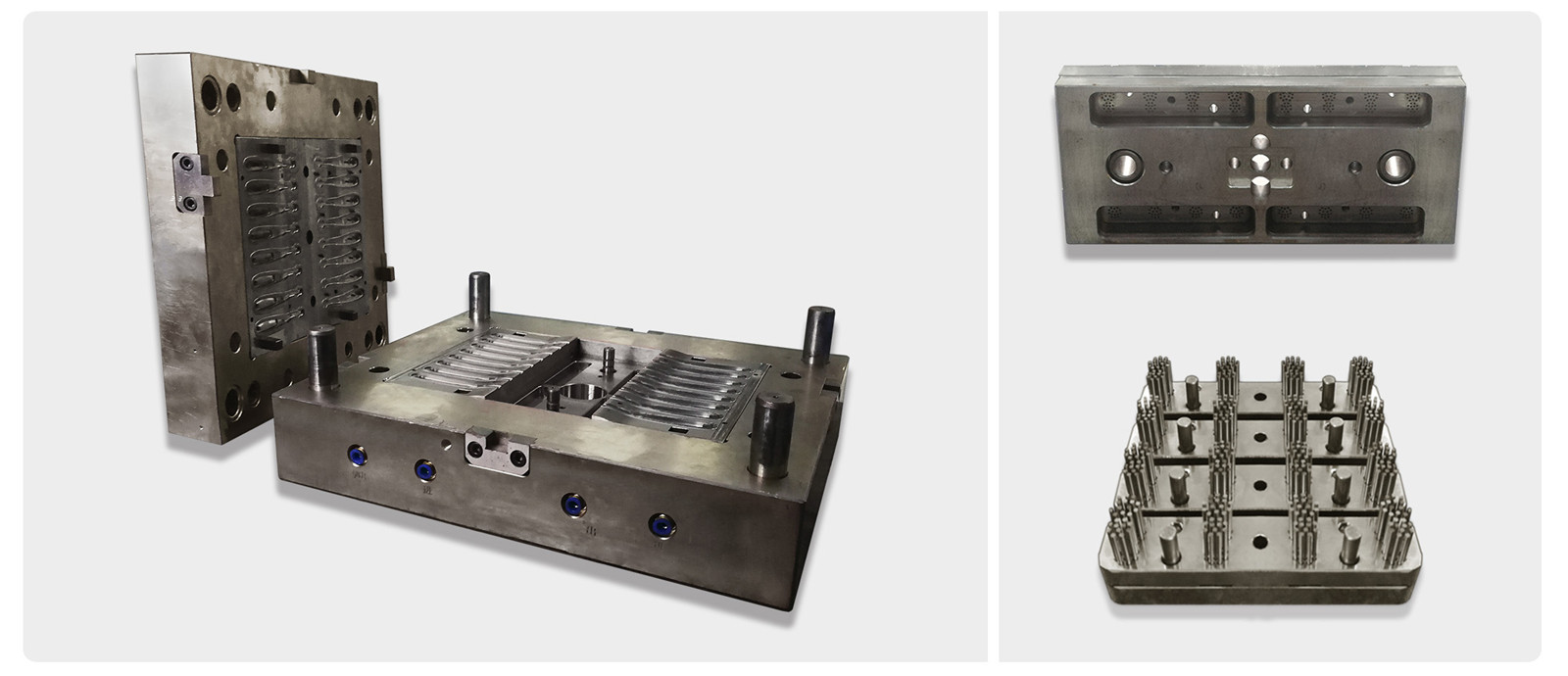

雙色注塑模具
Two-color injection mold
1. 模具大致規格:50*650*500。
2. 產品只數:8+8或12+12,成型周期40秒以內。
3. 中心軸或轉盤式旋轉雙色模。
1. General specification of mold: 50*650*500.
2. Product quantity: 8+8 or 12+12, molding cycle less than 40 seconds.
3. Two-color injection mold with center shaft or rotary disc type.

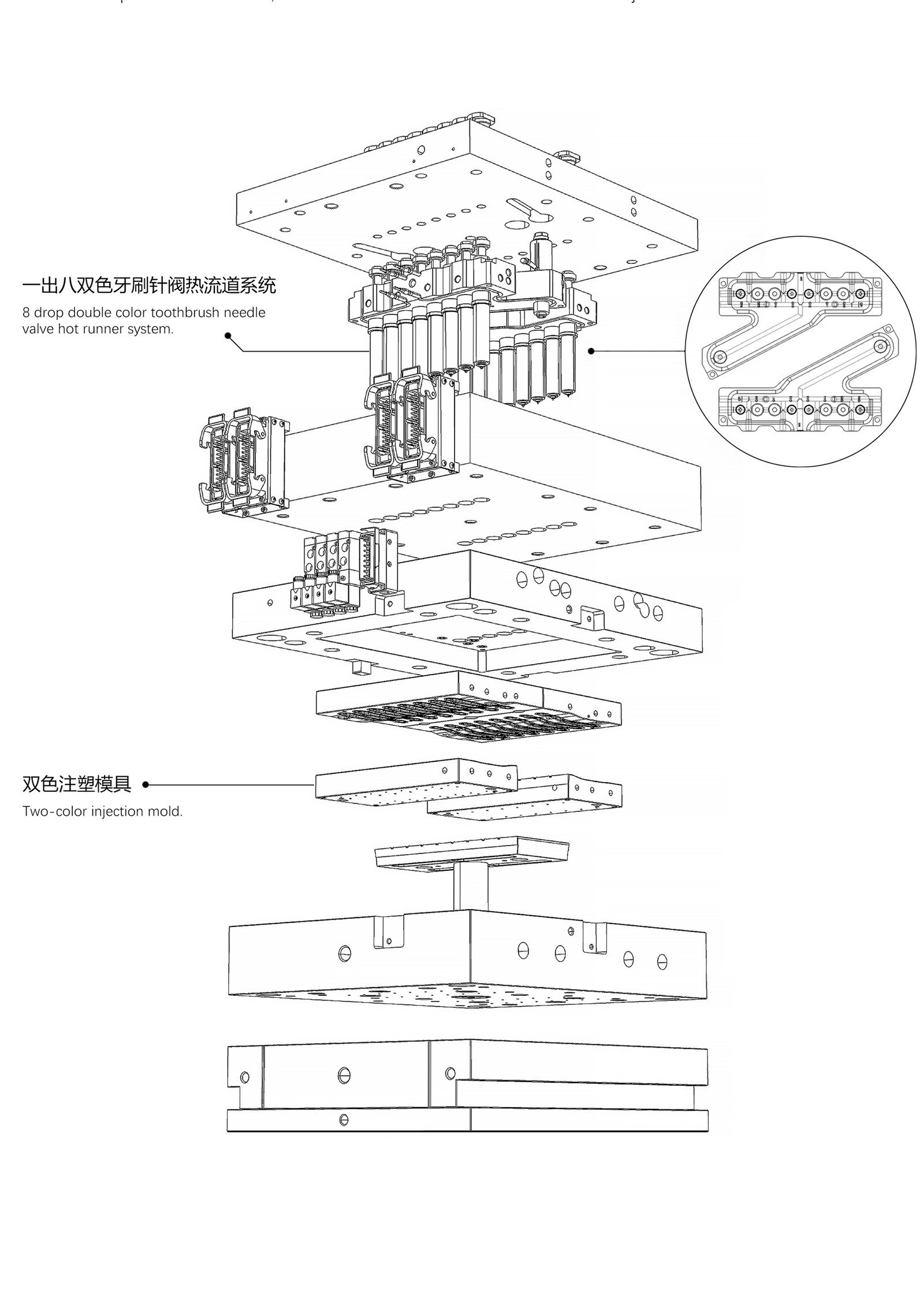

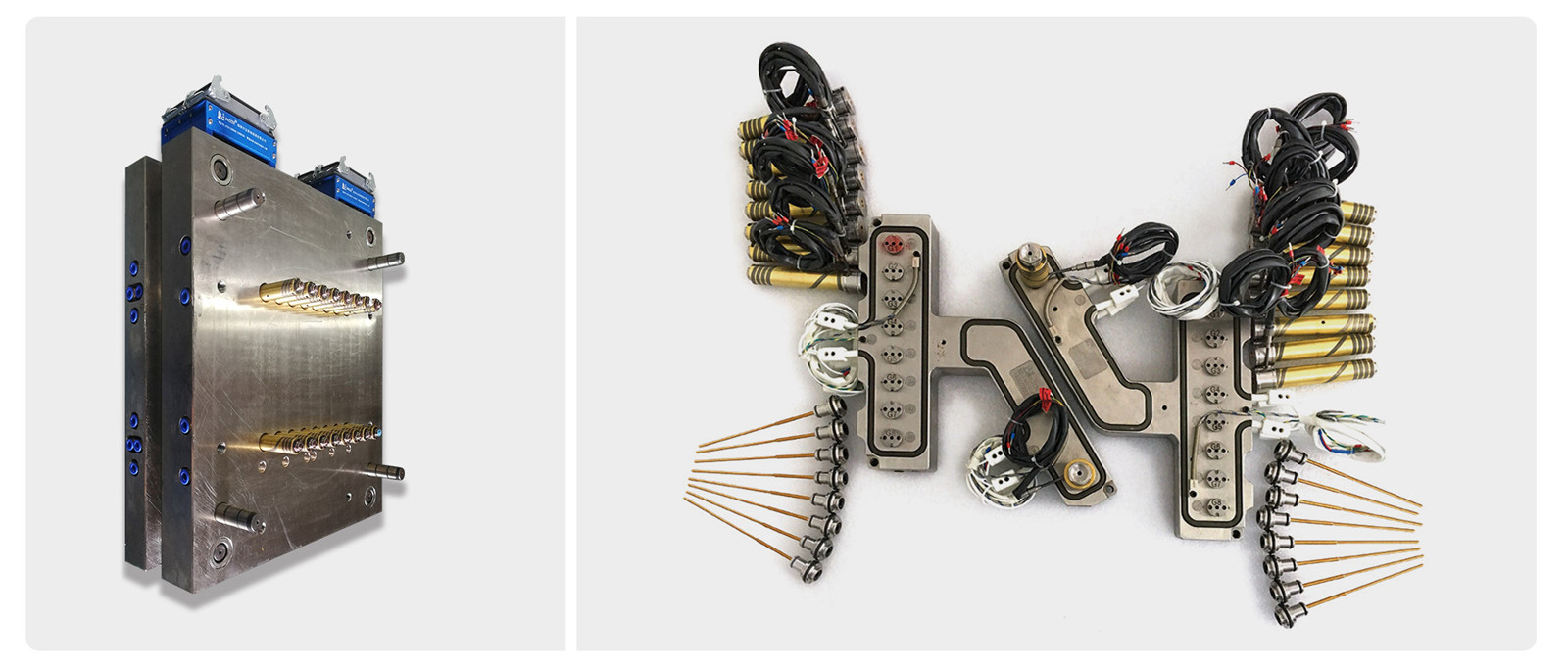

一出八雙色牙刷針閥熱流道系統
8 drop double color toothbrush needle valve hot runner system
1. 氣缸小而不影響力度,排位間距可做到32.00mm。
2. 系統恒溫控制,軟硬膠粘合性好。
3. 嚴格的流道計算,納米刷頭不分解。
4. 流道平衡,系統出膠均勻,產品穩定。
5. 鑲件式流道銜接,無死角快速換色。
1. Small Cylidner with enough power,Min distance can be 32mm.
2. Stable system control to make resin combined well.
3. Accurate flowing rate,Brush head not decomposed.
4. Flowing balance and each part difference rate less than 3%.
5. Insert technology,no dead corner and easy color change.
